(01)Project indexNewest first

Working
hardware.

Six working devices across four case studies, spanning embedded DSP, USB MIDI, analog audio electronics, interface design, soldering, and enclosure fabrication.

01

Flagship / Embedded audio

BonesFX

A dual-channel, touchscreen guitar effects processor built around the Daisy Seed. Ten effect blocks can run in combination, with compact physical control and two update paths.

—Daisy Seed10 effectsNextion HMIDual channel

BonesFX digital guitar effects processor
 02

Embedded control / MIDI

8-Button MIDI Footswitch

A USB-C floor controller whose eight switches can each be assigned momentary or latching operation with a dedicated rear-panel DIP switch.

—Arduino Pro MicroUSB MIDI8 footswitches3D printing

Eight-button MIDI footswitch with a textured silver enclosure
 03

Analog audio / Three-device series

Analog Guitar Pedals

Three complete analog effects builds: a high-gain preamp, four-stage OTA phaser/vibrato, and transistor-based sawtooth tremolo.

—TL072OTA modulation2N6027Metal enclosures

Three hand-built analog guitar effects pedals
 04

First build / MIDI

GrimReach

A 16-knob USB MIDI controller with four capacitive-touch banks, expanding a compact physical interface into 64 programmable CC controls.

—Arduino MegaC++Capacitive touch64 CC controls

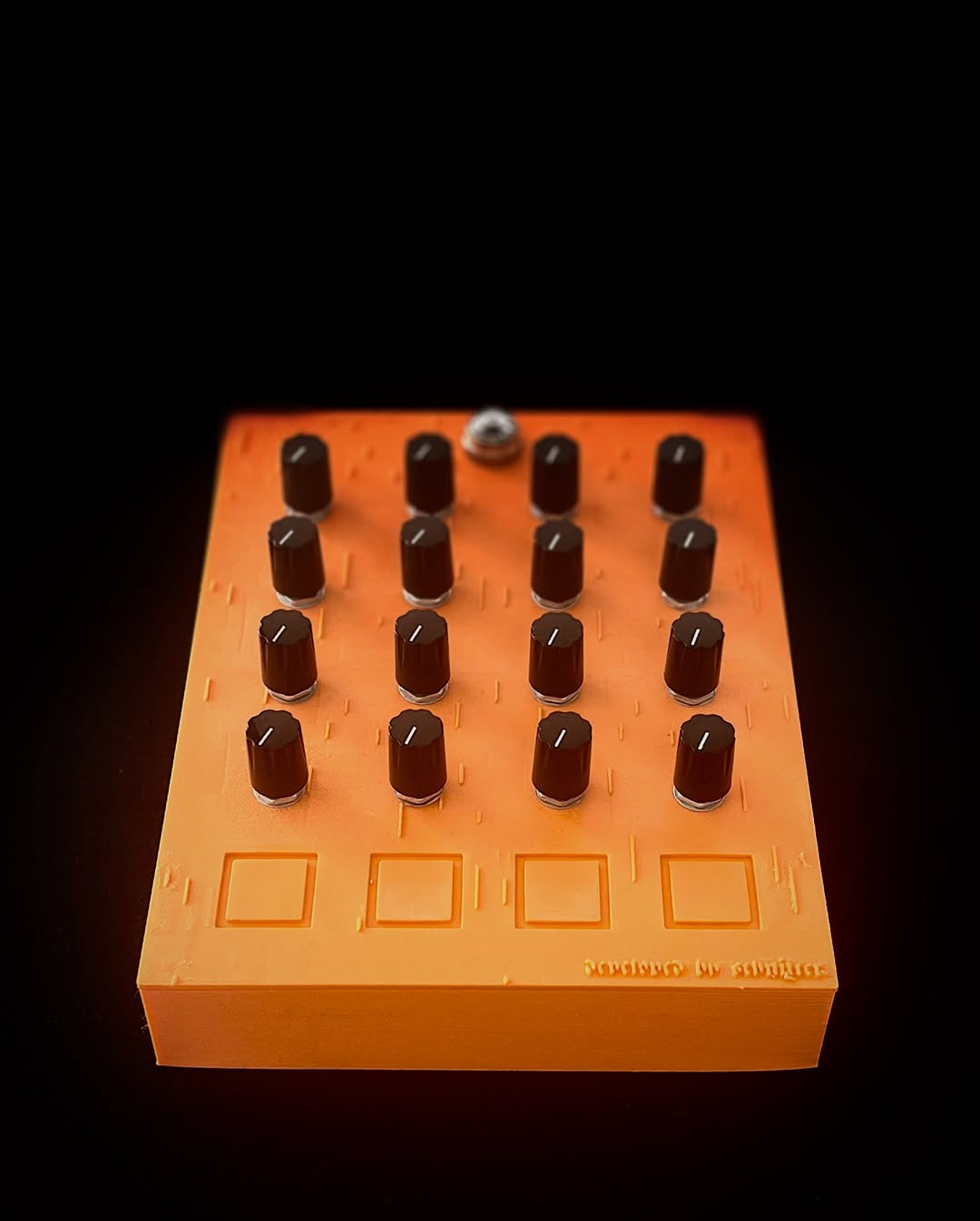

Orange GrimReach MIDI controller viewed from above
The device is not finished when the circuit works. It is finished when the whole instrument works.

This portfolio documents complete systems: electronics, code, control logic, mechanical constraints, visual design, assembly, and practical use.
